Trommel Screen
Drum screen/rolling cylinder drum sieve is designed for processing minerals, mainly for alluvial/placer gold ore washing &
screening, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump & water pipes, and other
facilities such as the feeding hopper and the mobile system. Small Mobile trommel screen also has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore
concentration, ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc
It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.

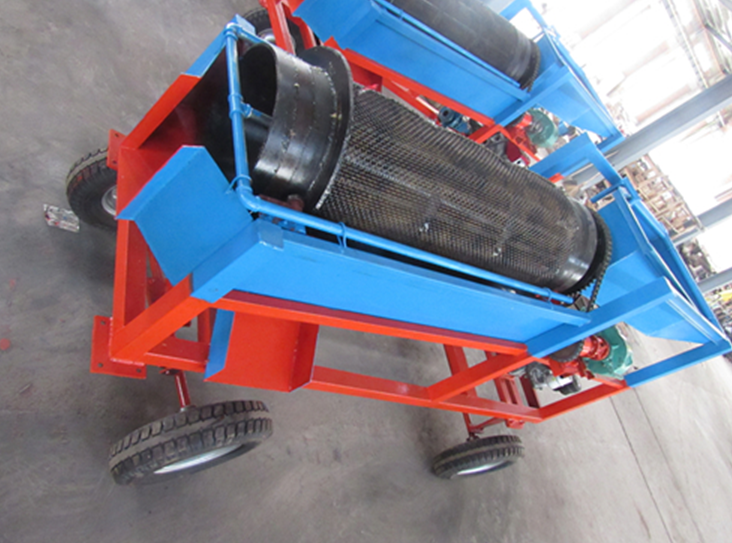

Small Mobile Trommel Screen
This portable trommel is a kind of gold washing and screening equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, small-medium handling capacity, simple operation, reliable operation, easy maintenance and convenient operation. We has been exported to Sudan, Africa,North Korea, Tanzania, Ghana etc.
Eastman mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
We can provide a variety of specifications of the trommel screen, including the trommel screen supporting other beneficiation equipment. We have a professional engineer for your needs to develop a plan, welcome to consult!
Technical Details
|
Model
|
Capacity (t/hr)
|
Power
|
Sieve tube diameter
|
Sieve tube length
|
Under the screen size /mm
|
Dimensions
|
Weight /kg
|
|
GT1015
|
50
|
4
|
1000
|
1500
|
<3~10
|
3000*1400*2145
|
2200
|
|
GT1020
|
100
|
5.5
|
1000
|
2000
|
3460*1400*2145
|
2800
|
|
GT1225
|
160
|
7.5
|
1200
|
2500
|
4146*1600*2680
|
4200
|
|
GT1530
|
250
|
11
|
1500
|
3000
|
4460*1900*2820
|
5100
|
|
GT1545
|
350
|
15
|
1500
|
4500
|
590*1900*3080
|
6000
|
|
GT1848
|
450
|
22
|
1800
|
4800
|
6500*2300*4000
|
7500
|
|
GT2055
|
600
|
30
|
2000
|
5500
|
7500*2500*4000
|
8600
|
